AEP800 -Fujitsu Chipsets

Features

complies with ANSI and ETSI requirements
matched to Fujitsu´s Keywave MB86670 chipsets
very low THD
1,500V minimum isolation
all materials approved to UL94V-0
excellent quality at competitive price due to high volume production
manufactured in ISO-9001 approved facility

AEP800 - Fujisu Chipsets

Electrical Specifications @ 25°C

Operating Temperature: -40° to +85°C

Part
Number

Package

IC Driver

Turns
Ratio
±2%
Line : IC

L_P
(µH)
±6%

L_L
(µH)
Max.

C_WW
(pF)
Max.

DCR
(Ohms)
Max.
Line / IC

THD
(Linearity)
Typical

Longitudinal
Balance
Min.

Insertion
Loss
Max.

Frequency
Response
Max.

Isolation
Voltage
(Vrms)

AEP800-T

TH

MB86670 CO

2 : 1

2,0

12

60

2,50 / 1,30

-80dB
100kHz

-40dB
30kHz-1,1MHz

0,5dB
100kHz

0,5dB
30kHz-1,1MHz

1.500

AEP800-S

SMD

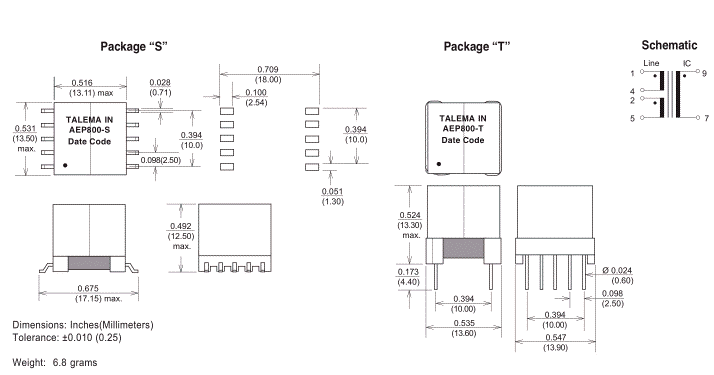

Dimensions & Schematic - Pins
